Dear All;

Starting to a new long term project. and I think this project will be more diffucult and detailed then my previous one, BMW M3 Rally.

the model I will try to replicate is belonging to Belgian rally pilot Patrick Snijers who had driven this Ford Escort Cosworth in European Rally championship in 1994.

I am planning to share more photos and maybe some videos about the rally (94 Ypres Rally) and the original car after I finish the model.

Posted Image

Posted Image

Posted Image

As base, I am using Ford Escort Cosworth road car made by UT models in 1/18 scale. Many of you may know that UT made nice models but not much detailed.
therefore, I had to make a lot of modifications on the chasis and floorpan. also, for the interior I have to built from scratch since the model was a road car. It's a bit challenging because I have to scratch built many parts and try to fit them into the car.

Posted Image

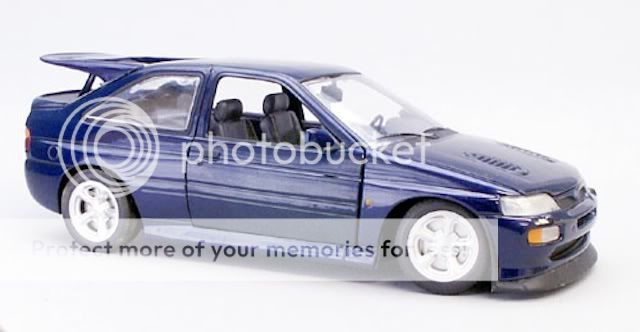

*photo taken from internet, credits to unknown owner. this is the original UT models 1/18 scale model.

another diffuculty is to find the correct spare parts such as wheels, tires, front lights etc. which is time consuming, therefore, I am expecting this project to be a long term one.

anyway, let the photos talk and introducing you guys what I have done so far in 2 months.

UT models missing many of the details and many parts are closed with the mold/cast. therefore, I had to cut and trim many areas on the model.
the first part was the engine bay. the engine they used was only as look, and underside is the mold itself.

Posted Image

I would like to have a more detailed and accurate engine. therefore, I will be using Minichamps Sierra Cosworth engine.

Posted Image

the engine will be sitting like this and sure there will be some water pumps, tanks etc to be added.

Posted Image

secondly, I cut wholes for air intakes on the front bumper.  also did cut the side signals in order to have more air flow to the brakes.

Posted Image

later on I did draw and cut the air ventiles at the roof.

Posted Image

I have used Stryene sheet to make the roof air scoop

Posted Image

I have also drilled a small whole for the aerial.

Posted Image

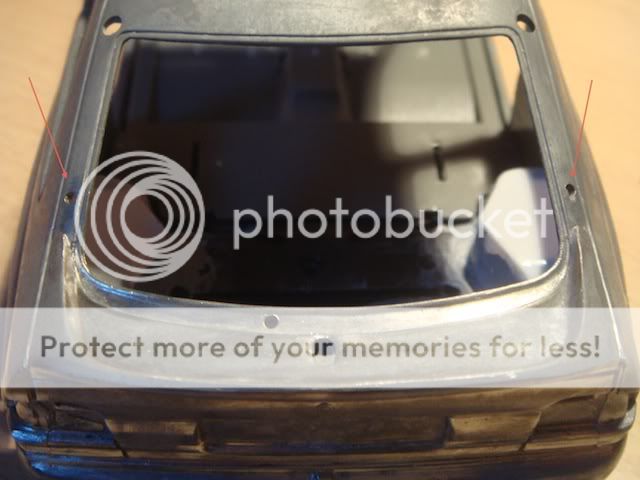

did drill the boot for the pins.

Posted Image

The air ventiles on the trunk were sealed, so I cut them for a better look. also did drill wholes for the hood pin.

Posted Image

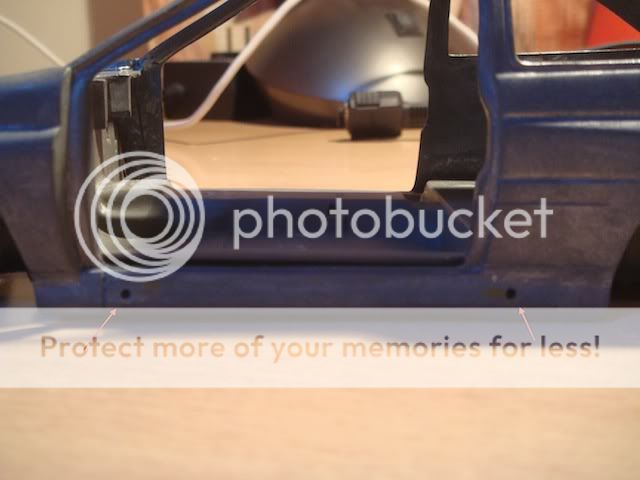

I have drilled the side skirts for the jack.

Posted Image

then, I have prepared part of the roll cage inside the engine area.

Posted Image

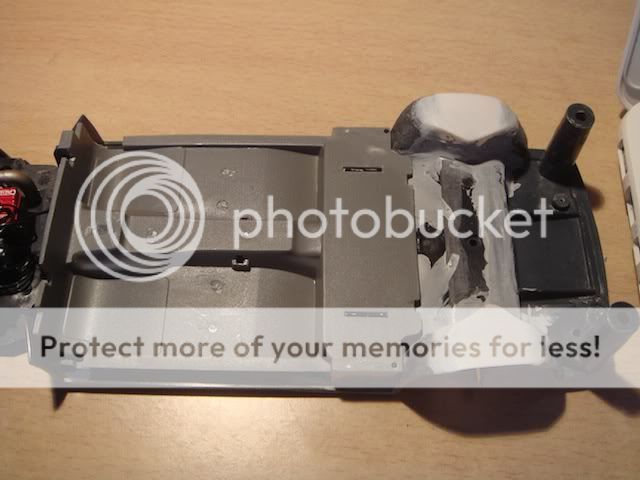

the original floorpan of the UT models is not so detailed. one of the most important missing was the top of the rear wheels were open. so I decided to cover with a stryene

Posted Image

Posted Image

especially the drive train was not so detailed. so I decided to merge the Minichamps Sierra Cosworth floor pan with the UT one in order to give more details, differential, gear box etc.

Posted Image

this is the latest look after merging two floorpans. still lot of detail to fix and finally will be painted into white.

Posted Image

once again I used Sierra Cosworth parts to prepare the inside floorpan. the front floorpan is from Sierra. now need to prepare the back side which probably has to be custom made by stryene sheets.

Posted Image

these days I am busy and try to continue this project when I could. and another difficulty is to find the correct spare parts and to get them. therefore I believe this project will take long time. but I can say I am enjoying it so much.
above took me 2 months to get it into this situation.

after the body and the floorpans are as I wish, I will continue with interior details such as roll cage, bucket seats, oil tank etc.

as usual I am looking forward to your critics, suggestions and comments.
