Hi all, seen loads of people asking about removing wheels from autoart models lately and even more people saying they've had to destroy the wheels / brakes to get them off, so I decided to do a quick walk through.

Obviously, all models differ from the skyline but please be aware that some may use more glue, different mountigs etc and this method may not work for all cars, but it has for all of the autoart models I have tried.

First, the car ill use
Posted Image
Posted Image

Getting the base off the car;
There are 6 screws, two in the middle clearly visible, two at the rear in the deep holes (one is partially covered by a plastic part but you can still get at the screw) and two at the front under the brake ducts, which need to be removed (unfortunately these will need to be reglued)
Posted Image
Remove these, the floor lifts straight out
Posted Image

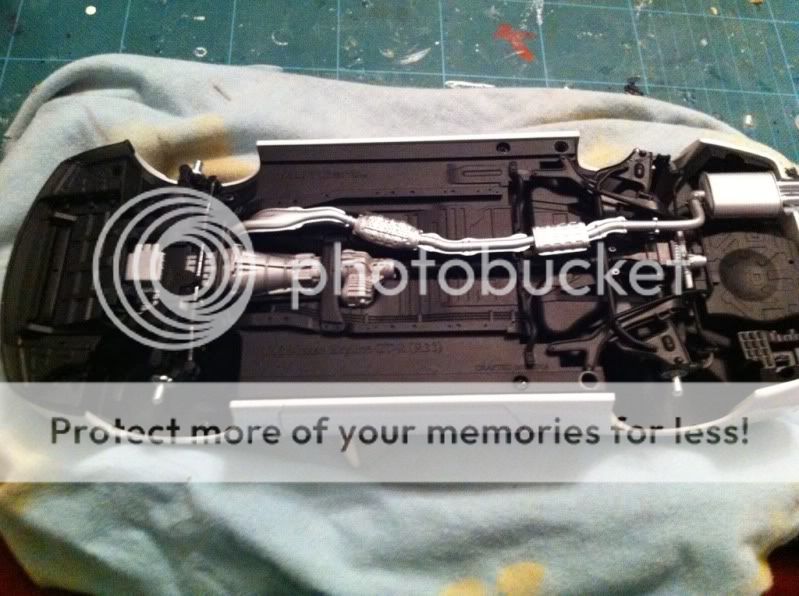

Removing the rear wheels;
Take off the exhaust, use a flat head screwdriver to prize it of the mounting pegs (one at the rear under the silencer, one in the centre under the cat)
Posted Image
Turn the base over, there are two small Phillips screws beside the wheel arches, unscrew these
Posted Image
Now the whole rear subframe should lift off, be careful as the anti roll bars etc are fixed to the base with mounting peg, but they'll prize out gently with a screwdriver or blade.
Posted Image
On the top side of the subframe, a separate plastic peice must be removed it is attached to the mounting area behind the wheels, prize it off with the screwdriver etc
Posted Image
Now take a look at where the wheel is mounted, now is a good time to cut the brake caliper away from the hub to allow more room
Posted Image
At this point you can use either some pliers/tin snips like these or a small flat head screwdriver (I prefer the tin snips)
Posted Image
Squeeze the tool in the small gap between the hub and the back of the brake disc, gently squeeze / twist if using a screwdriver till the brakes come away
Posted Image
Once you can see the mounting pin, grip it with some pliers an gently pull/twist the wheel, it will pop off

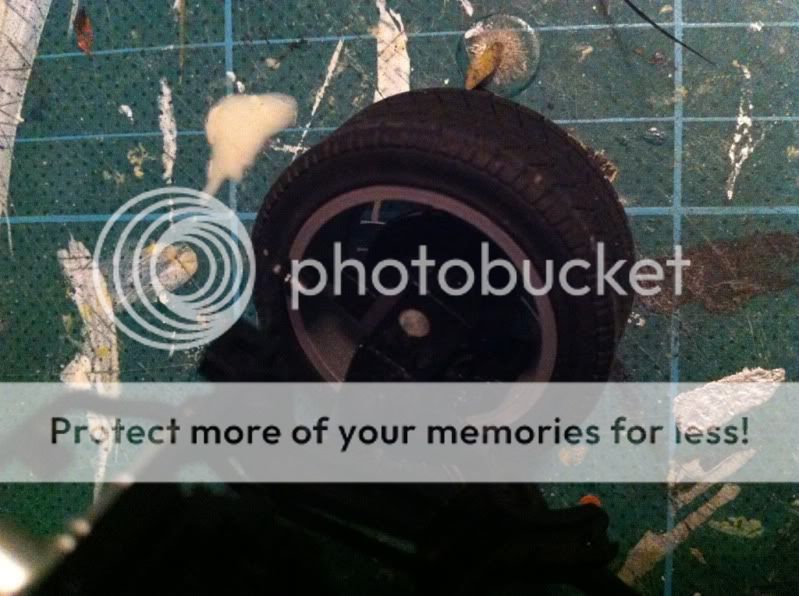

Posted Image
Now reattach the rear subframe to the floor of the car usin the screws. Little, if any, glue should be used.

Removing the front wheels;
Again, there are two Phillips screws at the front of the floor as shown
Posted Image

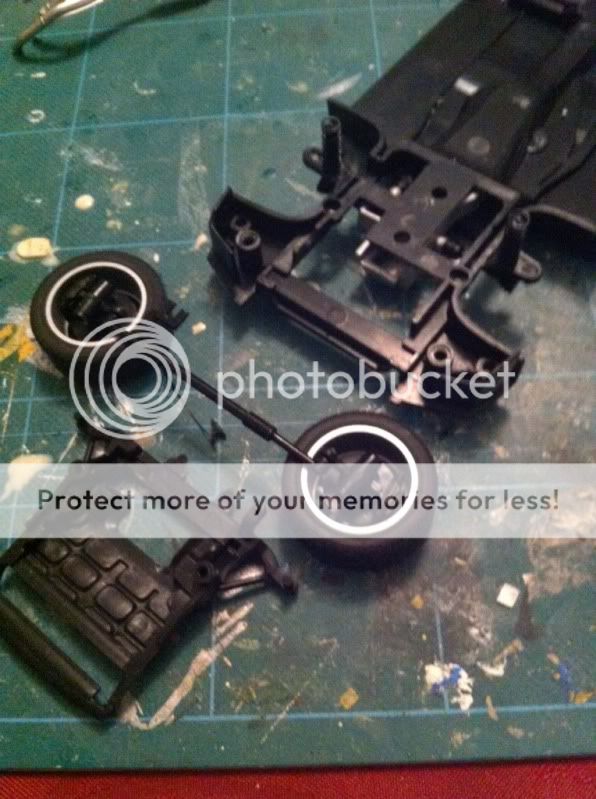

Undoing them will drop the front steering assembly from the car into these parts
Posted Image
Using the same method as the rear, gently squeeze some tin snips between the hub and the brake disc - take extra caution as the hubs are plastic and very fragile, it's a good idea NOT to hold onto the steering bar with your spare hand
Posted Image
Now the wheels are off, reassemble the steering - avoid glue otherwise you risk gluing the steering in one position
Posted Image
Remount the exhaust and brake ducts to the floor once screwed on
Posted Image
All done
Posted Image

Separating the brakes from the wheels;
This is tricky, and takes some practice
Posted Image
Using some regular pliers, grip the rear of the brake discs an gently squeeze, rotate slightly, squeeze, repeat through 360 degrees, when you squeeze there will be a quiet creaking /clicking, this is the glue separating from the parts.
Posted Image
Once you've completed the 360 degrees, grip the brake disc with the pliers and pull/twist , it should come away relatively easy.
Posted Image
Be careful not to deform the wheel spokes , if you squeeze the brakes too hard it can make the job harder!
Posted Image
Now you can use the original brakes on your new wheels, and chuck the old wheels into a diorama!
Posted Image


Thanks for reading, I hope it helps at least someone
Pete
